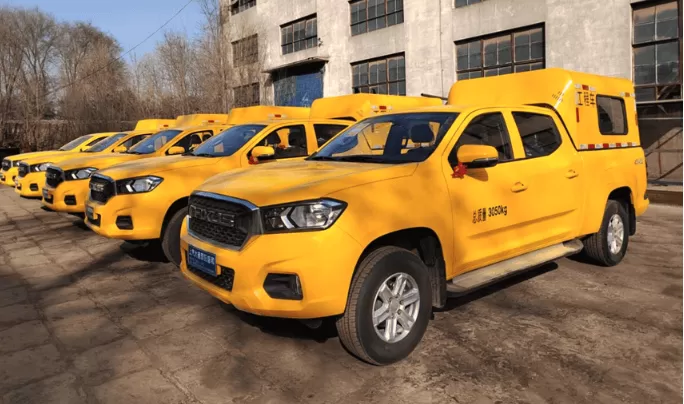

Service Vehicle
Detailed Parameters
| No. | Item Name | Basic Parameters | |
|---|---|---|---|
| 1 | Overall Dimensions L×W×H mm | 5680×1900×1809 | |
| 2 | Chassis | Model | SH1032E6DC-P |
| Engine Model | SC20M163Q6A, 4-cylinder turbocharged engine | ||
| Displacement & Power ml/kW | 1996/120 | ||
| 3 | Fuel Type | Diesel | |
| 4 | Rated Passenger Capacity (incl. driver) | 5 | |
| 5 | Wheelbase mm | 3470 | |
| 6 | Number of Axles | 2 | |
| 7 | Front/Rear Overhang mm | 942/1268 | |
| 8 | Approach/Departure Angle ° | 27/27 | |
| 9 | Front/Rear Track mm | 1580/1580 | |
| 10 | Min Ground Clearance mm | 190 | |
| 11 | Fuel Consumption L/100Km | 7.8 | |
| 12 | Gross Vehicle Weight kg | 3050 | |
| 13 | Axle Load kg | 1300/1750 | |
| 14 | Curb Weight kg | 1850 | |
| 15 | Leaf Springs | -/5 | |
| 16 | Tire Specification | 245/70R16 | |
| 17 | Emission Standard | GB3847-2005, GB18352.6-2016 National VI | |
| 18 | Max Speed km/h | 170 | |
| 19 | Overall dimensions, wheelbase, and other main chassis technical parameters are consistent with the national announcement. | ||
Detailed Parameters
| Type | Brushless |
|---|---|
| Drive Mode | Direct Connection |
| Protection Class | IP21 |
| Insulation Class | F |
| Welding Machine Drooping Characteristic | |
| Rated Power kW | 8.7 |
| Rated Current DCA | 280 |
| Rated Voltage DCV | 31.2 |
| No-Load Voltage DCV | 85 |
| Rated Duty Cycle % | 50 |
| Current Adjustment Range DCA | 60-310 |
| Auxiliary Power | |
| Rated Power kW | 3.0 |
| Rated Voltage V | DC220 |
| Rated Current A | 13.7 |
| Rated Duty Cycle % | 100 |
| Engine | |
| Type | Four-stroke twin-cylinder |
| Displacement cc | 653 |
| Rated Output Power hp | 22 |
| Rated Speed rpm | 3580 |
| Starting Mode | Electric Start |
| Fuel | Unleaded Gasoline |
| Cooling Mode | Air-cooled |
| Lubricating Oil Capacity l | 1.55 |
| Other | |
| Fuel Tank Capacity l | 20 |
| Overall Dimensions mm | 730×600×678 |
| Net Weight Kg | 150 |
| Battery | 12V-32AH |
| Wheels | Standard Configuration |
| Emission Standard | Meets environmental requirements, National V and above |
